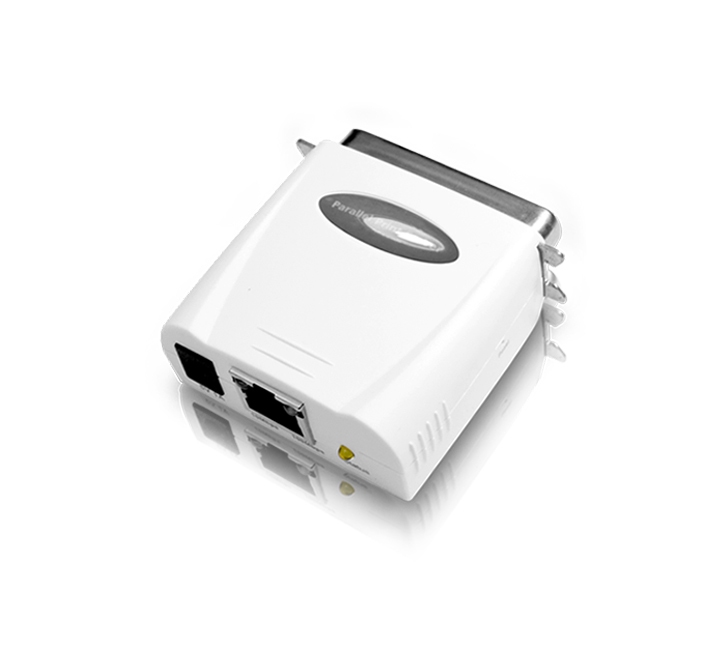

PAN1001-C

PAN1001-C

| Single Parallel Port Print Server |

CPU : MIPS24KEC SoC
FLASH : 2 MBytes
RAM : 8 MBytes
LAN : 10/100 Mbps
Interface : 1 Parallel Port
Power : 5V/1A
OS Support : Windows, Unix/Linux, MAC, Netware
Print : LPR, RAW TCP, IPP, SMB, AppleTalk, Print Monitor, Netware Bindery/NDS

PARALLEL PORT

10 / 100Mbps

TCP / IP

EASILY

Highly Compatible

Features

  • The PAN1001B print server allows you to take the computer out of the loop while setting up a printing network.
  • All that is needed is to connect the PAN1001B to a printer via the parallel port, connect the print server to your LAN, and you will be able to access your printer from any computer on the LAN.
  • This parallel port print server is compatible with most majorities of printers on the market.
  • The PAN1001B Ethernet to Parallel Network Print Server lets you convert a standard parallel printer into a shared network printer over a 10/100Mbps network.
  • And allows multiple computers to share one parallel printer on the network.

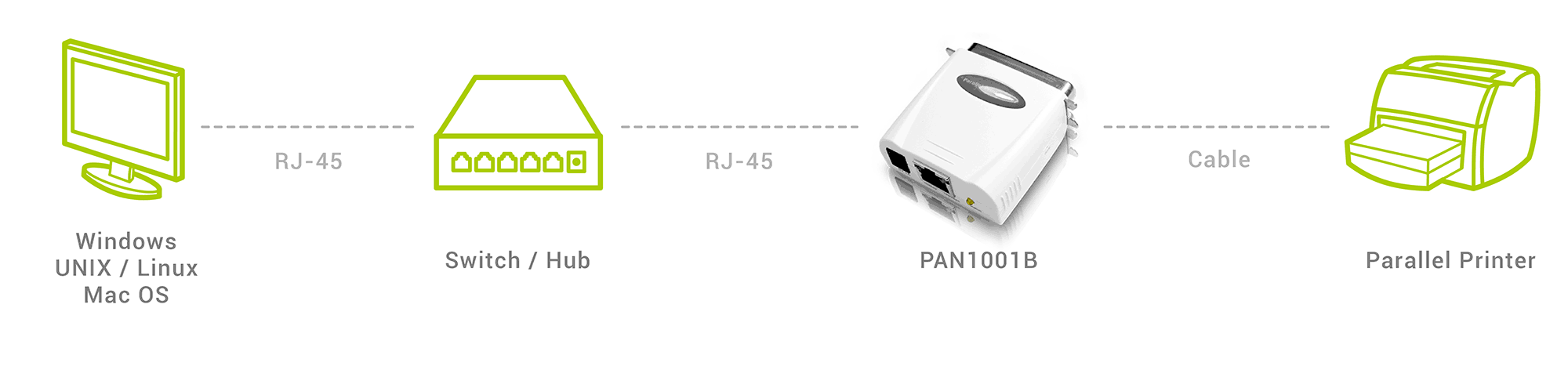

Application Scenario

Specification
